Durable Transmission Line Tool Hand Cable Puller 3.2 Ton For Aluminium Lever Hoist

Name: Durable Transmission Line Tool Hand Cable Puller 32 Ton For Aluminium Lever Hoist
Brand: Newart
Price: 1 USD

Place of Origin : Ningbo or Shanghai

Brand Name : Newart

Certification : ISO and CE

Model Number : RH3200S

MOQ : 50pcs

Price : Get the lasted price

Packaging Details : Cartons

Delivery Time : 30-35days after payment

Payment Terms : T/T 30% as deposit,balance before delivery time

Supply Ability : 5000pcs per month

Product Name : Hand Cable Puller

Usage : Aluminium Lever Hoist

Package : Cartons

Advantage : Easy operation

Model : RH3200S

Brand : Newart

Contact Now

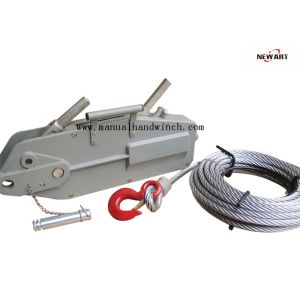

Durable Hand Cable Puller 3.2Ton For Aluminium Lever Hoist Easy operation

Specification of hand pulling hoists
1.Capacity: 0.8T x 20M, 1.6T x 20M, 3.2T x 20M, 5.4T x 20M. The lifting height can be customized.
2.All hoists are supplied complete with 20 meter wire rope and an extendable operating lever.
3.Wire rope is tapered one end and fitted with a hook and safety catch at the other end.
3.The hoist has low maintenance requirements and is easy service.
4.Overload protection ensures high personal safety when in operation.
5.Specially built-in shear pins can be replaced without removing the load.
1. Wire rope hand pulling hoist, hand pulling hoists Introduction:
VIT model cable pulling winch is a kind of small-sized, compact, hand-operated lifting tool. It features light weight, compact structrue, wide range of applications and easy maintenance. This type of hoist is suitable to use outdoor sites under advrse circumstances.

Specifications
Item No.	RH800S	RH1600S	RH3200S	JHSS54
Lifting Capacity(kg)	800	1600	3200	5400
Pulling Capacity(kg)	1300	2800	6000	10125
Tested to(kg)	1500	3000	6000	10125
Steel wire rope dia.(mm)	IWRC8.3	IWRC11	IWRC16	IWRC20
Wire rope safety factor load capacity(kg)	5xWLL	5xWLL	5xWLL	5xWLL
Breaking strength of wire rope(kg)	5430	9680	17200	27000
Overall structure breaking strength(kg)	4xWLL	4xWLL	4xWLL	4xWLL
Transmission speed rate per min(m)	3	3	3	3
Safety device	safety pins	safety pins	safety pins	safety pins
Net weight(without wire Rope)(kg)	6.4	12	23	28
